DSO152 HANDHELD
DIGITAL OSCILLOSCOPE
2.5 MSa/s — 200 KHz BANDWIDTH — 800 VPP
Professional-grade pocket oscilloscope with 2.5 mega-samples/second real-time sampling and 200 KHz analog bandwidth. 800 VPP maximum input voltage with DC/AC coupling and auto/normal/single trigger modes. Built-in PWM output, auto measurement (Vmax, Vmin, Vpp, frequency, duty, Vrms), 2.4" color TFT LCD, USB-C charging, and foldable kickstand. Required diagnostic instrument per Engineering Directive §14.7.
POCKET-SIZED SIGNAL ANALYSIS
> THE DSO152 IS A PROFESSIONAL HANDHELD DIGITAL OSCILLOSCOPE ASSIGNED TO ALL WEYLAND-YUTANI ENGINEERING PERSONNEL FOR FIELD DIAGNOSTICS, CIRCUIT ANALYSIS, AND SIGNAL VERIFICATION ACROSS COLONY INSTALLATIONS, SPACECRAFT SYSTEMS, AND INDUSTRIAL CONTROL NETWORKS.
> WITH A 2.5 MSa/s REAL-TIME SAMPLING RATE AND 200 KHz ANALOG BANDWIDTH, THE DSO152 CAPTURES WAVEFORMS FROM LOW-FREQUENCY POWER SIGNALS TO HIGH-SPEED DIGITAL COMMUNICATIONS. THE 800 VPP MAXIMUM INPUT VOLTAGE HANDLES EVERYTHING FROM MICROCONTROLLER I/O TO INDUSTRIAL POWER SUPPLY DIAGNOSTICS.
> THE BUILT-IN PWM SIGNAL GENERATOR AND 1 KHz SQUARE WAVE CALIBRATION OUTPUT MAKE THE DSO152 A COMPLETE BENCH TOOL IN YOUR POCKET. AUTO MEASUREMENT INSTANTLY DISPLAYS VMAX, VMIN, VPP, FREQUENCY, DUTY CYCLE, AND VRMS — PRESS ONE BUTTON AND THE WAVEFORM IS CAPTURED, TRIGGERED, AND ANALYZED.

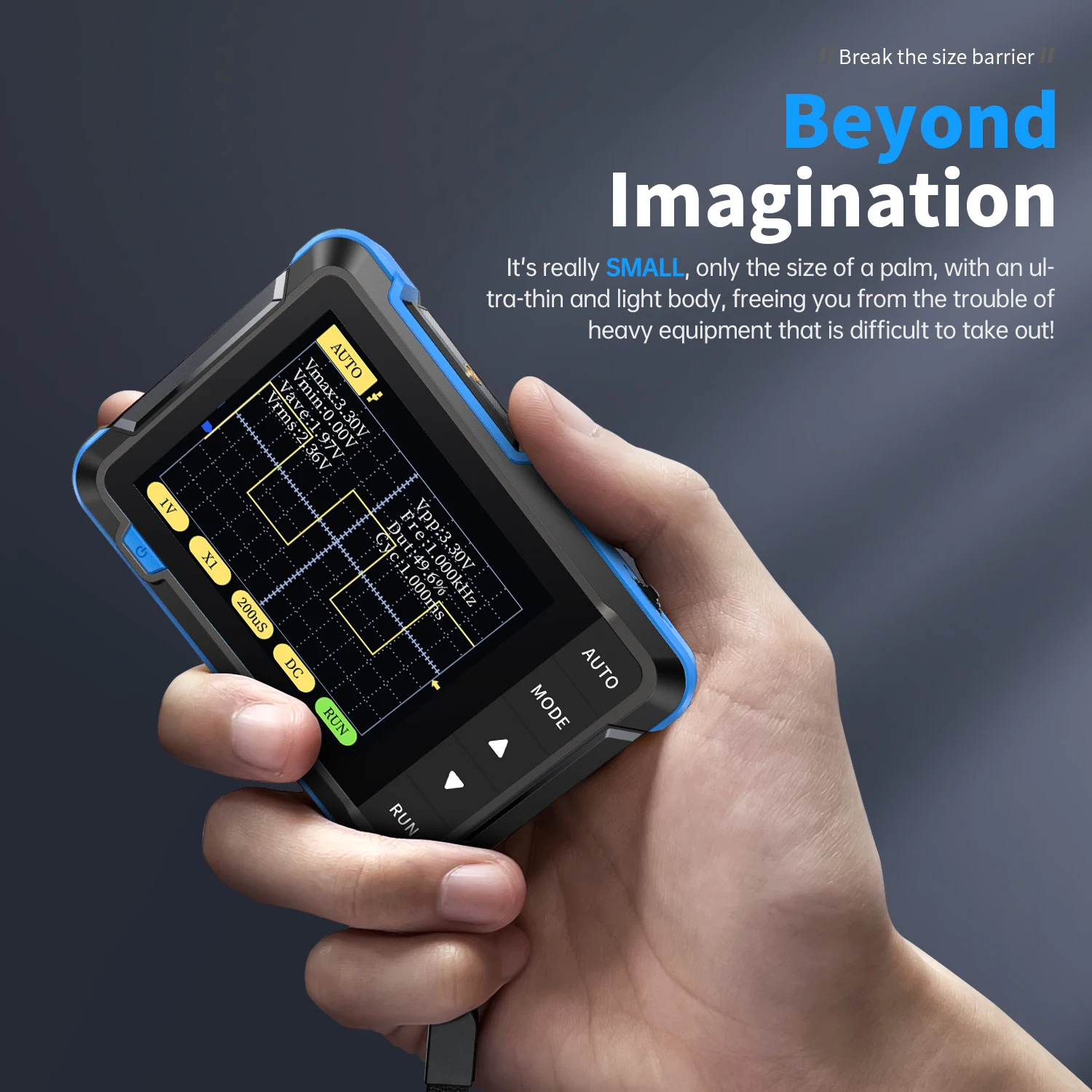

> PALM-SIZED AND ULTRALIGHT WITH A FOLDABLE KICKSTAND, USB-C CHARGING, AND 1,000 mAh BATTERY — THE DSO152 DEPLOYS ANYWHERE TRADITIONAL BENCH OSCILLOSCOPES CAN'T REACH. FIRMWARE UPGRADEABLE VIA USB-C ENSURES THE UNIT EVOLVES WITH YOUR DIAGNOSTIC REQUIREMENTS.
SIGNAL CAPABILITIES
2.5 MSa/s SAMPLING
Real-time sampling rate of 2.5 mega-samples per second with 200 KHz analog bandwidth captures fast-moving signals with precision. Vertical sensitivity from 20 mV/div to 200 V/div covers micro-electronics to high-voltage diagnostics.
800 VPP INPUT RANGE
Maximum input voltage of 800 volts peak-to-peak enables safe measurement of high-voltage circuits, power supply diagnostics, and industrial control systems without external attenuation.
PWM SIGNAL OUTPUT
Built-in PWM generator with configurable duty cycle for testing servo motors, LED drivers, and control circuits. Square wave calibration output at 1 KHz for probe compensation.
AUTO MEASUREMENT
One-button AUTO function instantly captures and displays Vmax, Vmin, Vpp, frequency, duty cycle, and Vrms. Eliminates manual trigger setup — press AUTO and read the waveform immediately.
FOLDABLE KICKSTAND

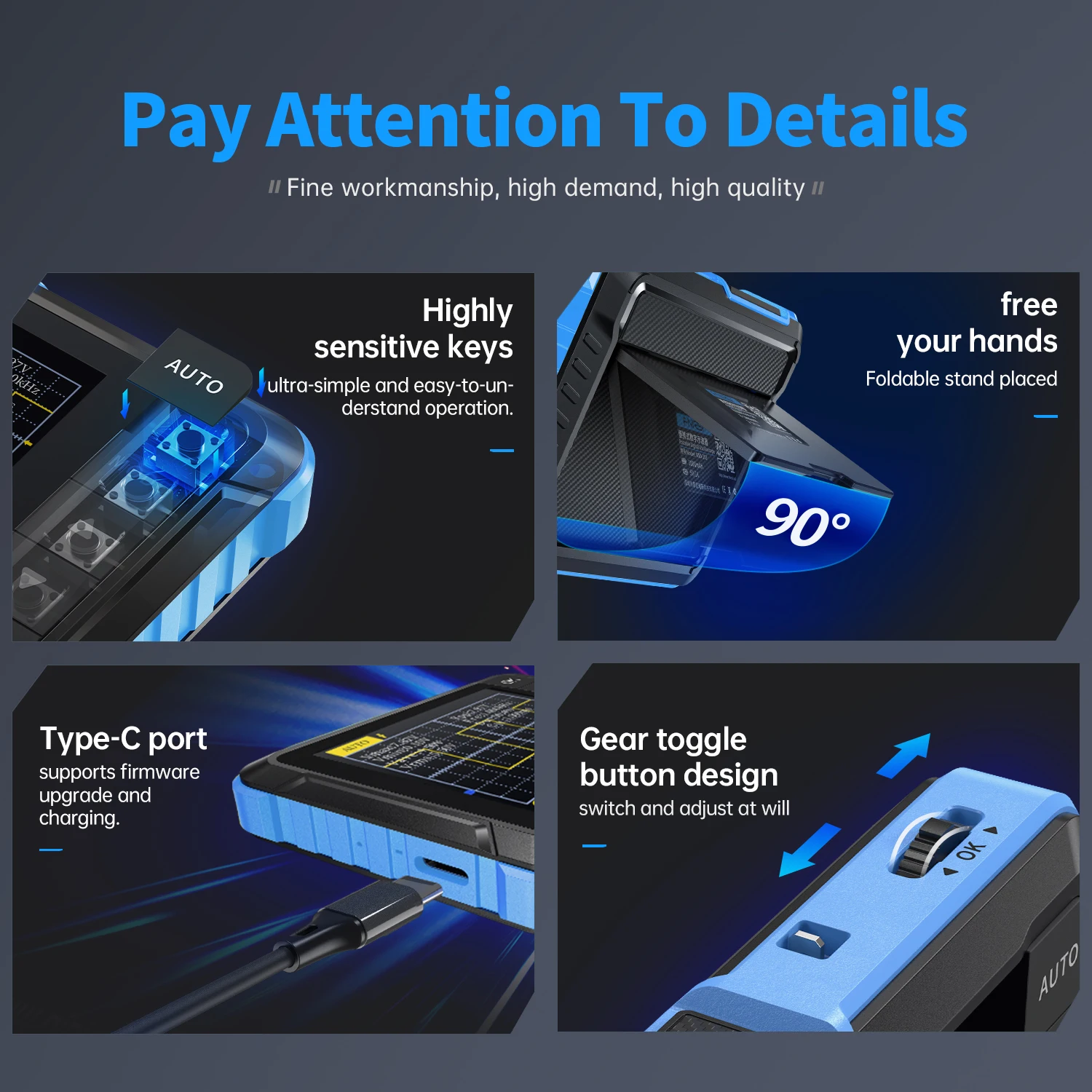

Integrated 90° foldable stand frees your hands during bench work. Compact pocket-sized form factor with wrist lanyard. Gear toggle and trackwheel buttons for intuitive one-handed navigation.
USB-C & FIRMWARE
USB Type-C port for 5V/1A charging and firmware updates. 1,000 mAh rechargeable lithium battery for extended field deployment. No AA batteries, no dongles — one cable does everything.
AUTO ANALYSIS
Press AUTO and the oscilloscope captures, triggers, and displays the waveform with all parameters
Vmax, Vmin, Vpp, frequency, duty cycle, and Vrms displayed simultaneously on the waveform screen
Switch between DC coupling (full signal) and AC coupling (blocks DC offset) for signal isolation
Auto (continuous), Normal (triggered only), Single (one-shot capture) for every signal scenario

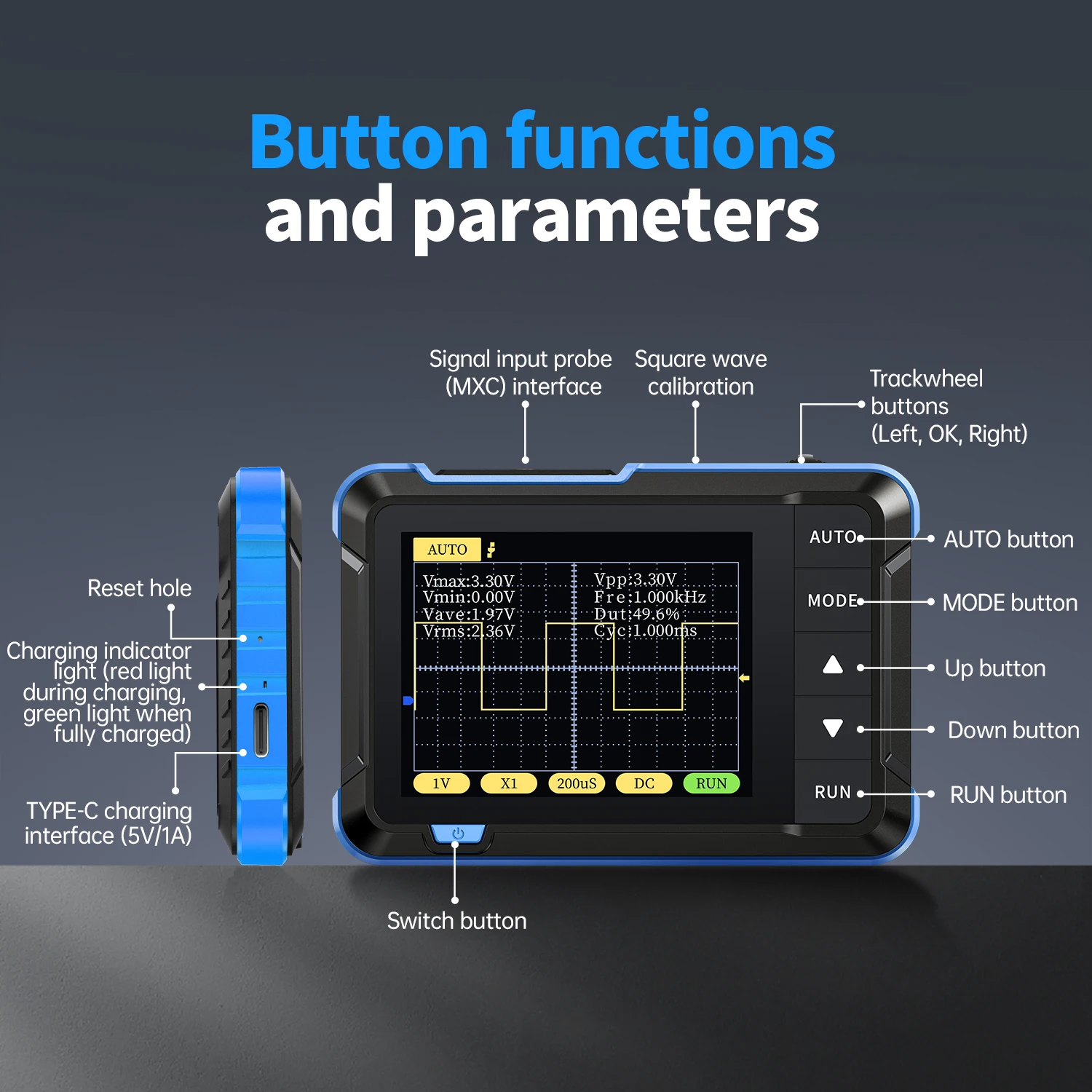

Left/OK/Right trackwheel + dedicated AUTO, MODE, and RUN buttons for one-handed operation
POWER & PORTABILITY
> THE DSO152 FITS IN YOUR PALM. AN ULTRA-THIN, LIGHTWEIGHT BODY WITH INTEGRATED WRIST LANYARD MEANS THIS INSTRUMENT GOES WHERE BENCH OSCILLOSCOPES CAN'T — INTO THE FIELD, UP THE LADDER, INSIDE THE PANEL.

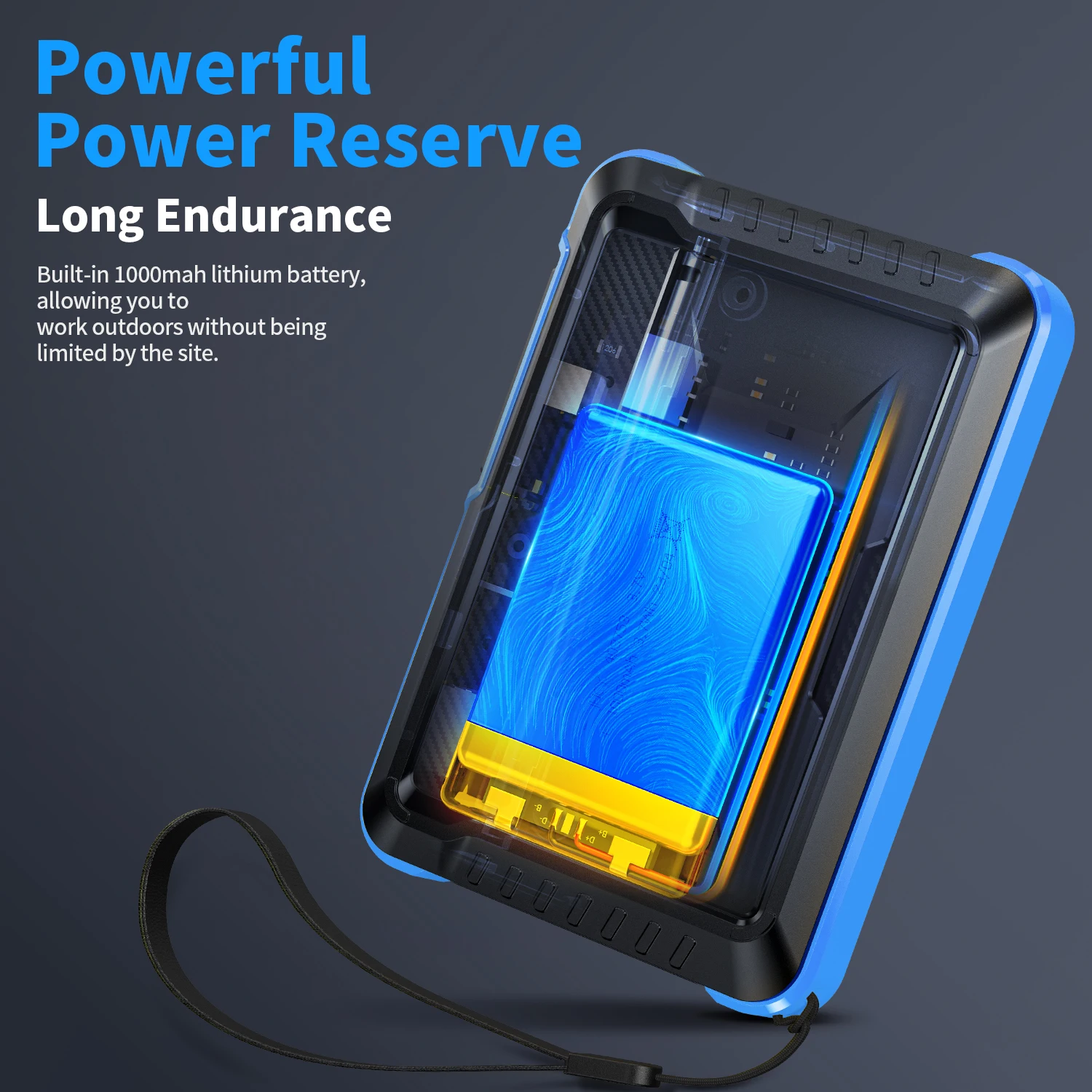

> THE BUILT-IN 1,000 mAh LITHIUM BATTERY CHARGES VIA USB TYPE-C AND PROVIDES HOURS OF CONTINUOUS OPERATION. THE CHARGING INDICATOR SHOWS RED DURING CHARGE AND GREEN WHEN FULL. NO EXTERNAL POWER ADAPTERS OR BATTERY PACKS REQUIRED.
TECHNICAL SPECIFICATIONS
OPERATIONAL APPLICATIONS
POWER SYSTEMS
Diagnosing power supply ripple, transformer output, inverter waveforms, and voltage regulator stability in colony infrastructure
CIRCUIT DEBUG
Verifying digital signals, PWM duty cycles, serial communications, and timing on embedded systems and control boards
FIELD SERVICE
On-site troubleshooting of industrial equipment, motor drives, sensor circuits, and communication interfaces
EDUCATION & R&D
Electronics coursework, prototyping, Arduino/Raspberry Pi signal analysis, and research lab measurements
PACKAGE CONTENTS
NOTE: BATTERY PRE-INSTALLED (1,000 mAh Li-ION). USB-C CABLE FOR CHARGING AND FIRMWARE UPDATES. WRIST LANYARD INCLUDED.
CAPTURE. ANALYZE. DIAGNOSE.
Professional field oscilloscope for engineering personnel. Ships within 3–5 business days.
