HP-886A PORTABLE
RADIATION MONITOR
NUCLEAR RADIATION DETECTOR — GEIGER COUNTER

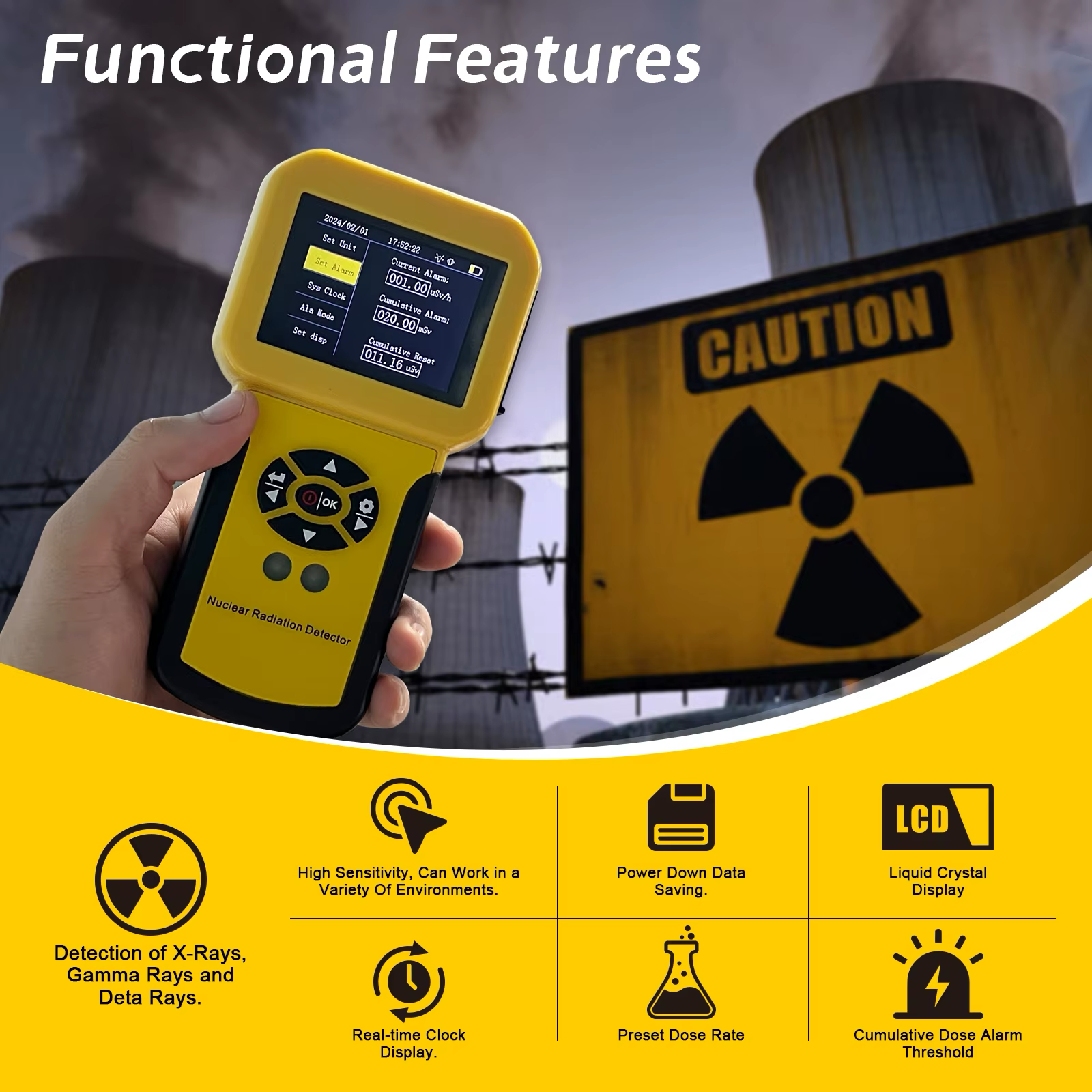

Professional-grade Geiger counter with Energy Compensation GM Tube for precise beta, gamma, and X-ray measurement. Dose equivalent rate up to 10,000 μSv/h with energy range 48 keV–1.5 MeV and 80 CPM/μSv sensitivity. 2.5" HD LCD with real-time graphing, triple alarm system, cumulative dose tracking up to 500 mSv, and 10-hour rechargeable battery. USB-C charging. Required equipment for all colony-bound personnel per Safety Directive §9.4.
PROFESSIONAL-GRADE RADIATION DETECTION
> THE HP-886A PORTABLE RADIATION MONITOR IS STANDARD-ISSUE EQUIPMENT FOR ALL WEYLAND-YUTANI PERSONNEL ASSIGNED TO COLONY-BOUND OPERATIONS, TERRAFORMING SITES, ATMOSPHERE PROCESSING FACILITIES, AND DEEP SPACE INSTALLATIONS.
> EQUIPPED WITH AN ADVANCED ENERGY COMPENSATION GEIGER-MÜLLER TUBE, THE HP-886A DELIVERS PRECISE BETA, GAMMA, AND X-RAY DETECTION ACROSS A MEASUREMENT RANGE OF 0.01 TO 50,000 μSv/h — FAR EXCEEDING THE CAPABILITIES OF STANDARD COUNTER TUBES FOUND IN CONSUMER-GRADE EQUIPMENT.
> THE 2.5-INCH HIGH-DEFINITION LCD PRESENTS REAL-TIME RADIATION GRAPHING, CURRENT AND CUMULATIVE DOSE READINGS, MAXIMUM AND AVERAGE EXPOSURE RATES, AMBIENT TEMPERATURE, AND RELATIVE HUMIDITY ON A SINGLE UNIFIED DISPLAY. THREE INDEPENDENT ALARM MODES — LED, VIBRATION, AND AUDIBLE — ENSURE IMMEDIATE NOTIFICATION WHEN RADIATION LEVELS EXCEED CONFIGURABLE SAFETY THRESHOLDS.
> COMPACT, RUGGEDIZED, AND RECHARGEABLE, THE HP-886A IS DESIGNED FOR EXTENDED FIELD DEPLOYMENT IN HARSH ENVIRONMENTS. WHETHER YOU'RE MONITORING ATMOSPHERIC PROCESSOR EMISSIONS, SURVEYING PRE-TERRAFORMED TERRAIN, OR CONDUCTING SAFETY INSPECTIONS AT MINERAL EXTRACTION SITES — THIS UNIT DELIVERS THE DATA YOU NEED TO OPERATE SAFELY.
DETECTION CAPABILITIES
ENERGY COMPENSATION GM TUBE
Advanced Geiger-Müller tube with energy compensation delivers superior accuracy across the full detection spectrum. Measuring range of 0.01 to 50,000 μSv/h with less than 15% basic error — far exceeding standard counter tubes found in consumer-grade equipment.
TRIPLE ALARM SYSTEM
Configurable threshold-based alerting via LED visual indicator, physical vibration motor, and audible alarm. Set independent current dose rate and cumulative dose thresholds. Immediate notification when radiation levels exceed safe operational parameters.
REAL-TIME DATA VISUALIZATION
2.5-inch high-definition LCD with backlight displays live radiation readings, historical graph trending, maximum and average dose rates, cumulative exposure, ambient temperature, and relative humidity — all on a single unified interface.
5 DOSAGE UNIT OPTIONS
Switch between μSv/h, μGy/h, mR/h, CPS, and CPM to match your operational protocols and reporting requirements. Cumulative dose equivalent tracking from 0.00 μSv to 500.0 mSv for long-term exposure monitoring.
ENVIRONMENTAL MONITORING
Integrated temperature and humidity sensors provide ambient environmental data alongside radiation measurements. Essential for correlating environmental conditions with radiation readings during field operations.
FIELD-READY CONSTRUCTION

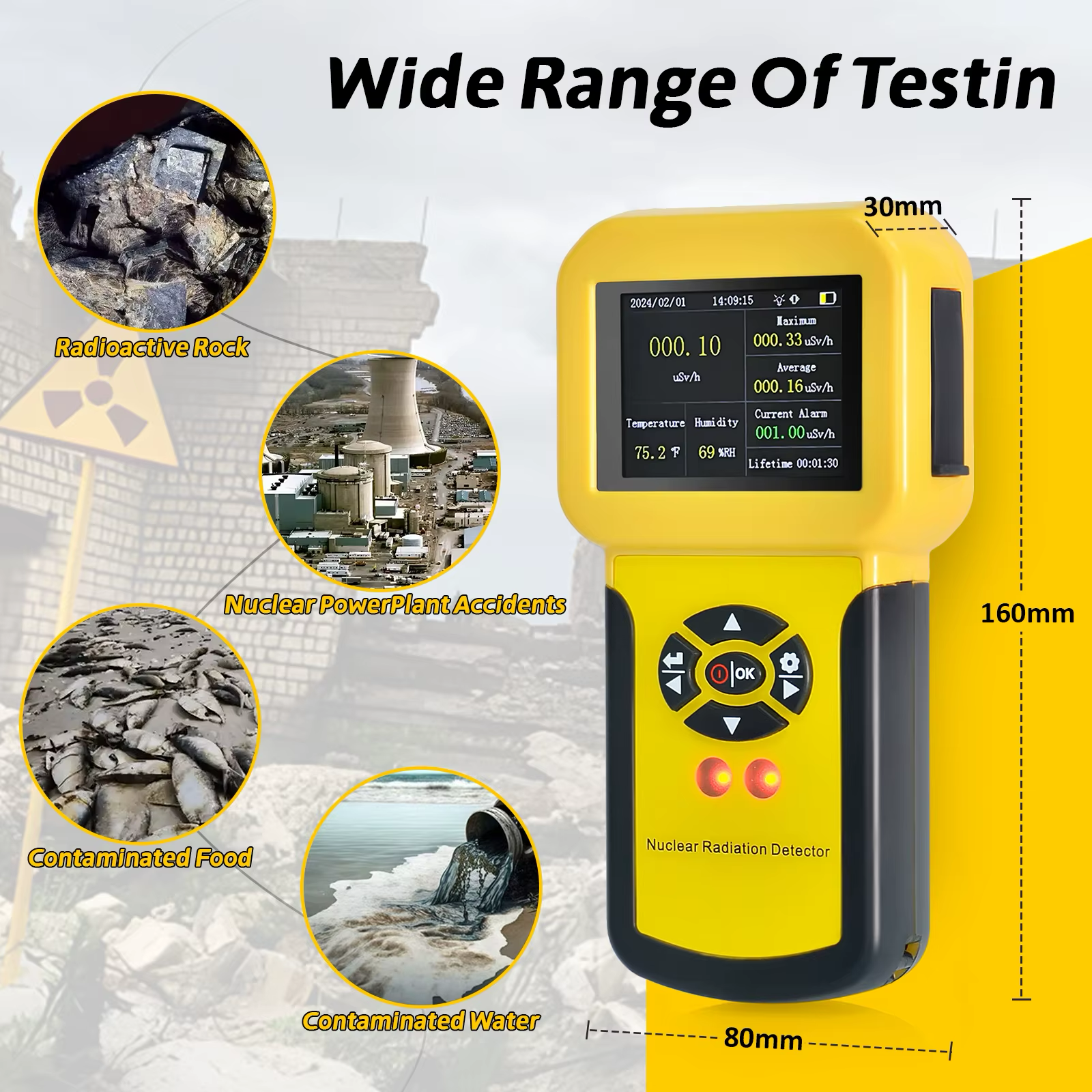

Ruggedized housing in high-visibility yellow with ergonomic grip design. Rechargeable lithium-ion battery for extended field deployment. Compact 160×80×30mm form factor fits standard equipment pouches and utility belts.

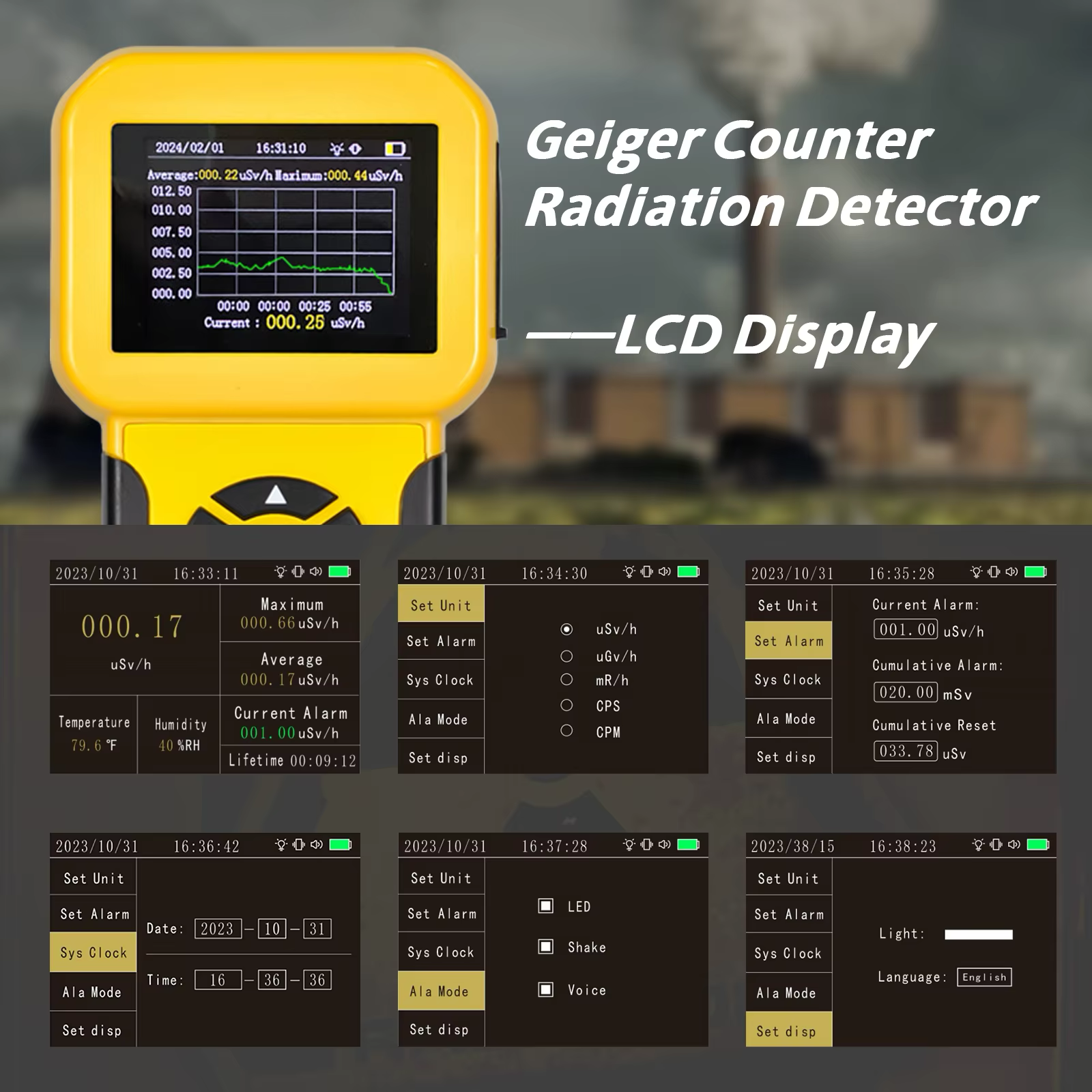

INTELLIGENT LCD DISPLAY
Live dose rate trending with historical data visualization for pattern identification
Current, maximum, and average dose rates shown simultaneously with cumulative exposure
Set independent current dose rate (μSv/h) and cumulative dose (mSv) alarm triggers
μSv/h · μGy/h · mR/h · CPS · CPM — switch to match your reporting protocol
Ambient temperature (°F/°C) and relative humidity displayed alongside radiation data
ENERGY COMPENSATION GM TUBE

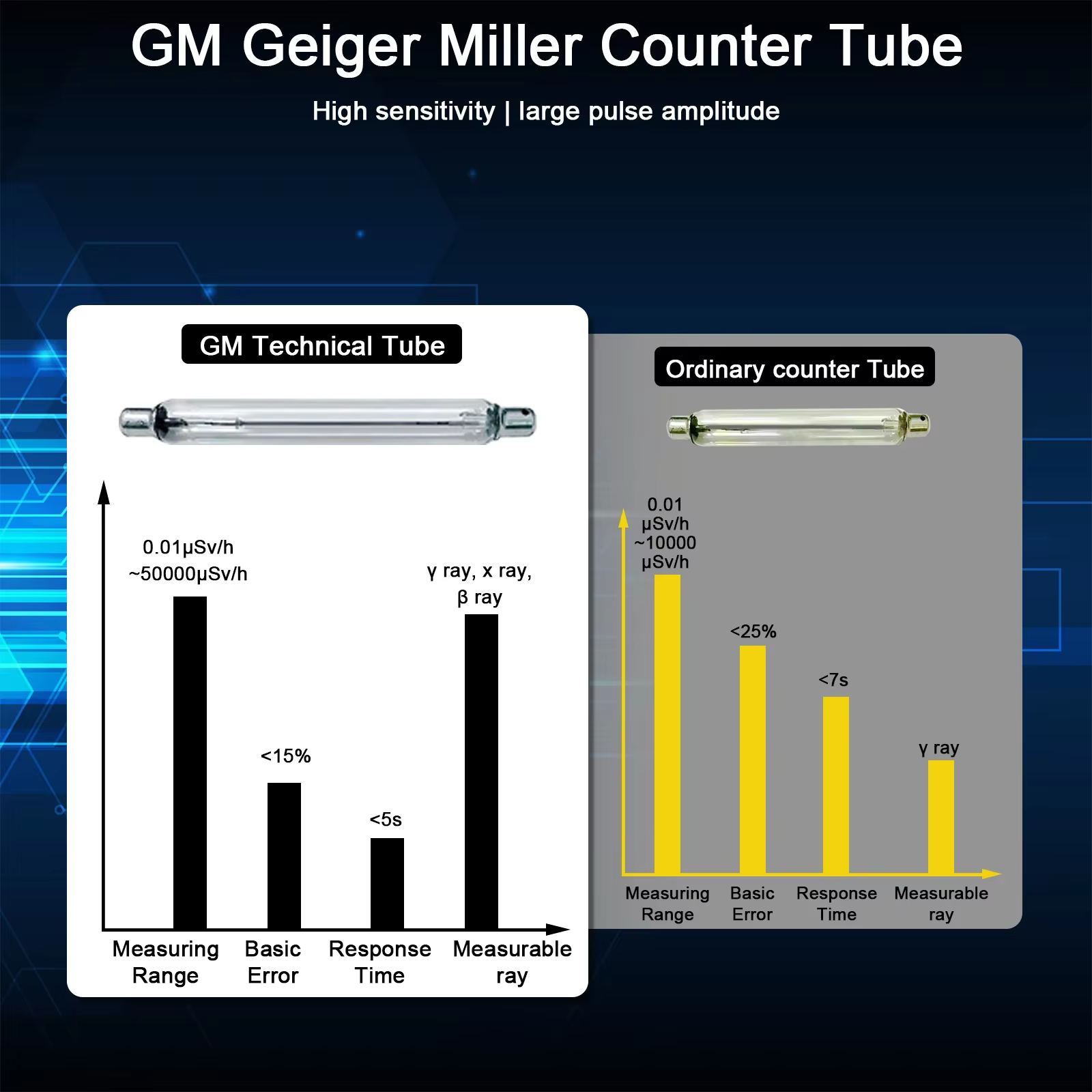

> THE HP-886A USES AN ENERGY COMPENSATION GEIGER-MÜLLER TUBE RATHER THAN A STANDARD COUNTER TUBE. THE DIFFERENCE IS SIGNIFICANT: WIDER MEASURING RANGE (UP TO 50,000 μSv/h VS 10,000), LOWER BASIC ERROR (<15% VS <25%), FASTER RESPONSE TIME (<5s VS >7s), AND DETECTION OF BETA PARTICLES IN ADDITION TO GAMMA AND X-RAY.
> ENERGY COMPENSATION CORRECTS FOR THE ENERGY-DEPENDENT RESPONSE CHARACTERISTICS OF THE GM TUBE, PROVIDING ACCURATE DOSE RATE READINGS ACROSS THE FULL ENERGY SPECTRUM OF IONIZING RADIATION — NOT JUST AT CALIBRATION ENERGIES.
TECHNICAL SPECIFICATIONS
OPERATIONAL APPLICATIONS
COLONY TERRAFORMING
Monitoring atmospheric processor emissions and ambient radiation levels during planetary modification operations
MINERAL EXTRACTION
Safety monitoring at mining operations and ore processing facilities where naturally occurring radioactive materials may be present
HOME & PERSONAL
Test building materials, food products, water sources, and personal environment for radiation contamination
RESEARCH & EDUCATION
Laboratory use, educational demonstrations, environmental studies, and nuclear science research applications
PACKAGE CONTENTS
NOTE: BATTERY PRE-INSTALLED (1,100 mAh Li-ION). USB-C CABLE INCLUDED FOR RECHARGING. 365-DAY WARRANTY.
DETECT. ALERT. PROTECT.
Standard-issue radiation monitoring for colony-bound personnel. Ships within 3–5 business days.
