GH340 THERMAL
IMAGING CAMERA
640×480 SUPER IR — DUAL CAMERA — VOx DETECTOR
Professional-grade dual-camera thermal imager with Live Super Resolution upscaling from 256×192 to 640×480. Advanced VOx uncooled microbolometer with <40 mK sensitivity detects temperature differentials as small as 0.05°C. Three imaging modes (Thermal/Visual/Fusion), 6 color palettes, -20°C to 550°C range, auto hot/cold spot tracking, and high/low temperature alarms. IP54 rated with 2-meter drop certification. Required thermal inspection equipment per Safety Directive §12.1.
SEE WHAT'S INVISIBLE
> THE GH340 IS A PROFESSIONAL DUAL-CAMERA THERMAL IMAGING SYSTEM DEPLOYED BY WEYLAND-YUTANI ENGINEERING, SAFETY, AND MAINTENANCE DIVISIONS FOR NON-CONTACT THERMAL INSPECTION OF COLONY INFRASTRUCTURE, ELECTRICAL SYSTEMS, HVAC NETWORKS, AND STRUCTURAL INTEGRITY ASSESSMENT.
> THE LIVE SUPER RESOLUTION ALGORITHM TRANSFORMS THE 256×192 VOx DETECTOR OUTPUT INTO 640×480 THERMAL IMAGES IN REAL-TIME — FOUR TIMES THE PIXEL COUNT OF STANDARD THERMAL IMAGERS. AT 25 Hz FRAME RATE WITH THERMAL SENSITIVITY BELOW 40 mK, THE GH340 CAPTURES TEMPERATURE DIFFERENTIALS THAT OTHER CAMERAS MISS ENTIRELY.
> THE BUILT-IN DUAL-CAMERA SYSTEM COMBINES INFRARED AND VISIBLE LIGHT IMAGING INTO THREE MODES: PURE THERMAL FOR RAW HEAT MAPPING, PURE VISUAL FOR SPATIAL CONTEXT, AND FUSION FOR OVERLAID ANALYSIS. SIX COLOR PALETTES OPTIMIZE VISIBILITY FOR EVERY SCENARIO — FROM ELECTRICAL FAULT DETECTION TO MOISTURE INFILTRATION MAPPING.
> BUILT FOR THE FIELD: IP54 DUST AND SPLASH PROTECTION, 2-METER DROP CERTIFICATION, 6-HOUR BATTERY LIFE, AND 8 GB INTERNAL STORAGE FOR 40,000+ IMAGES. USB-C EXPORT TO ANY COMPUTER — NO PROPRIETARY SOFTWARE REQUIRED. FROM ATMOSPHERIC PROCESSOR INSPECTIONS TO COLONY HVAC AUDITS, THE GH340 IS THE STANDARD.
THERMAL CAPABILITIES

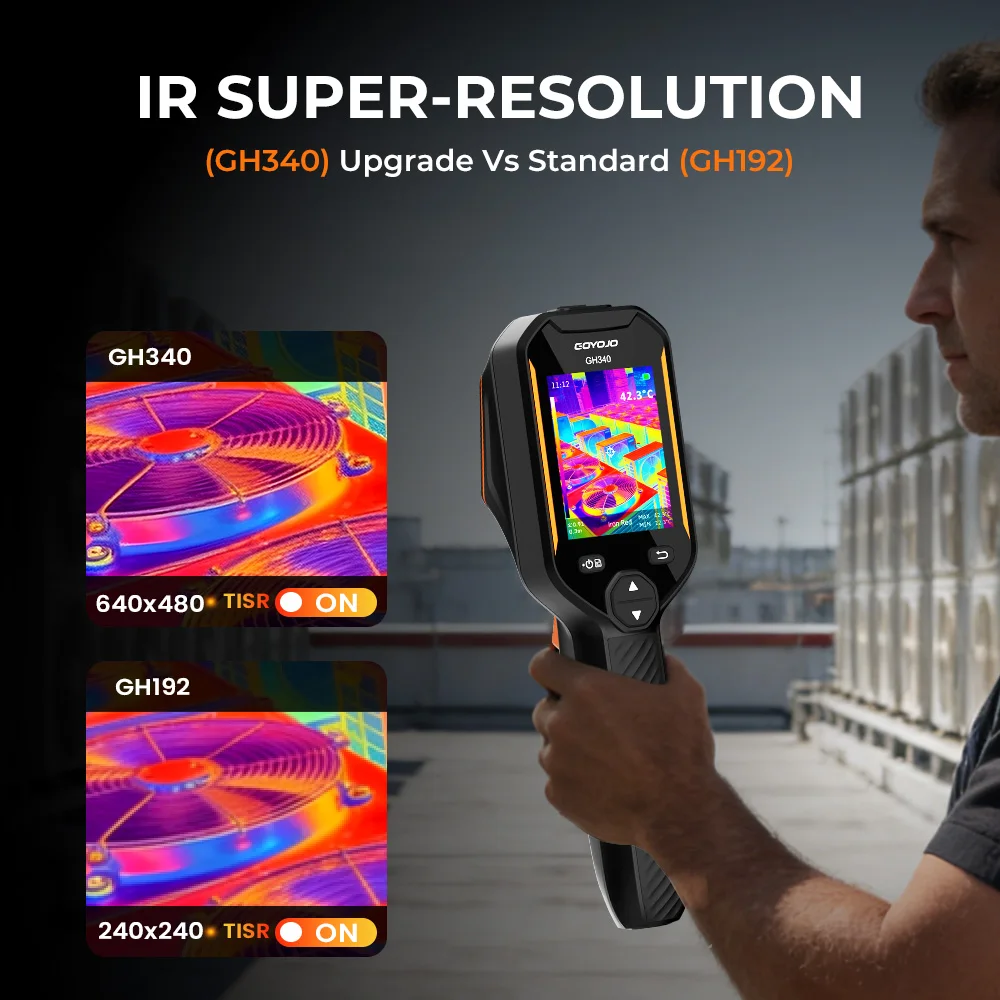

640×480 SUPER RESOLUTION
Live Super Resolution algorithm upscales the 256×192 VOx detector to 640×480 imaging resolution in real-time. Smooth, vivid thermal images at 25 Hz frame rate with exceptional thermal sensitivity below 40 mK — capturing details invisible to standard thermal imagers.

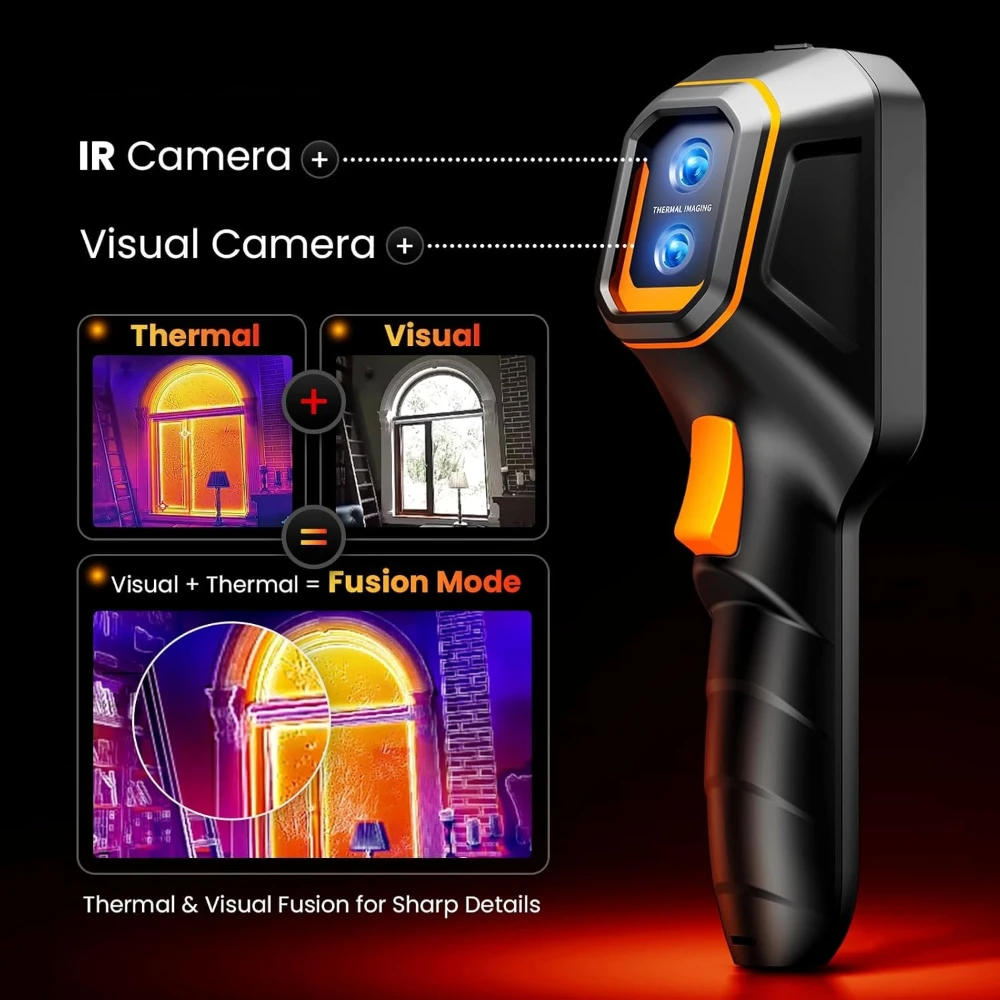

DUAL-CAMERA FUSION
Built-in IR and visual cameras provide three image modes: pure Thermal, pure Visual, and Fusion overlay. Switch instantly with the Up button. Previously unreadable labels, edge details, and spatial context become crystal clear in Fusion mode.
-20°C TO 550°C RANGE
Wide temperature measurement from -20°C to 550°C covers everything from cryogenic leak detection to industrial furnace monitoring. Automatic hot/cold spot tracking with high and low temperature alarms alert you instantly when targets exceed safe thresholds.
VOx DETECTOR PRECISION
Advanced Vanadium Oxide (VOx) uncooled microbolometer detects temperature differentials as small as 0.05°C. Accuracy within ±2°C or ±2%. Adjustable emissivity settings for accurate readings on any material — metal, wood, brick, glass, or biological targets.

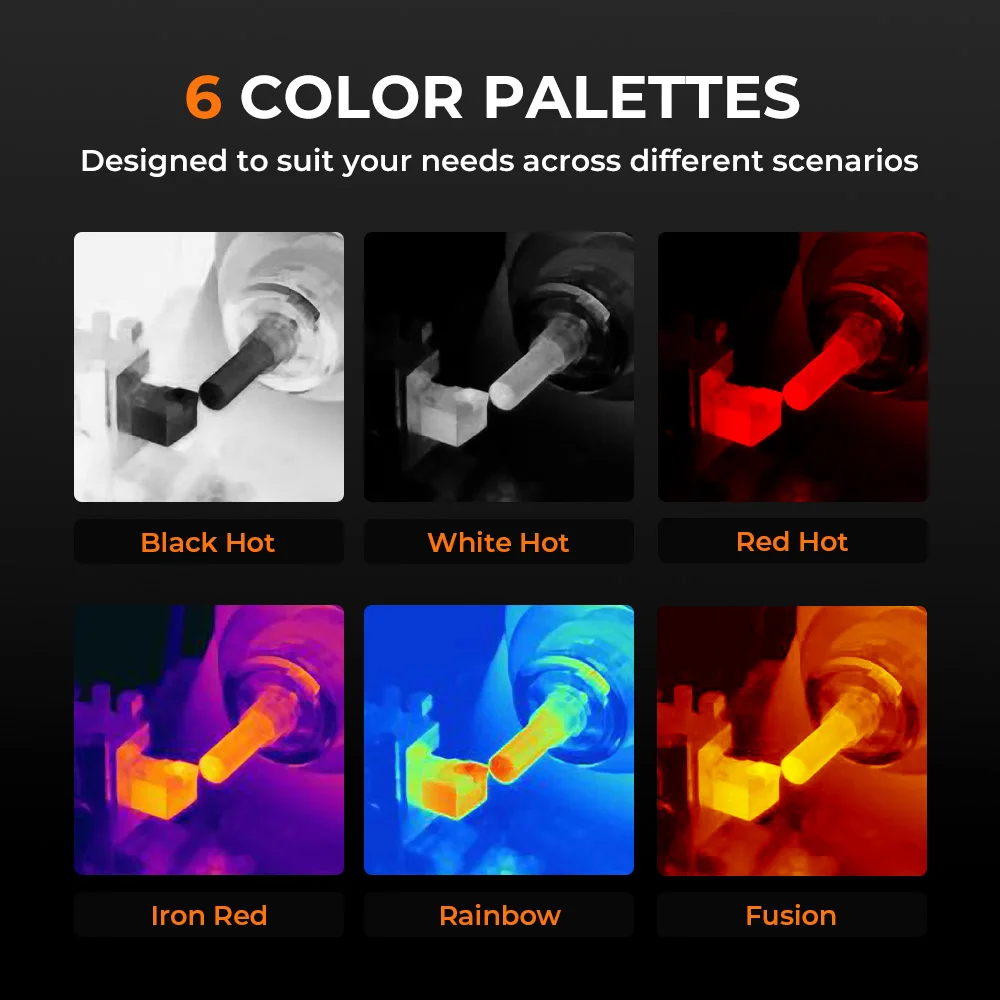

6 COLOR PALETTES
Black Hot, White Hot, Red Hot, Iron Red, Rainbow, and Fusion palettes — switch with a single click. Each palette optimized for different inspection scenarios: electrical (Iron Red), HVAC (Rainbow), moisture detection (White Hot), and more.

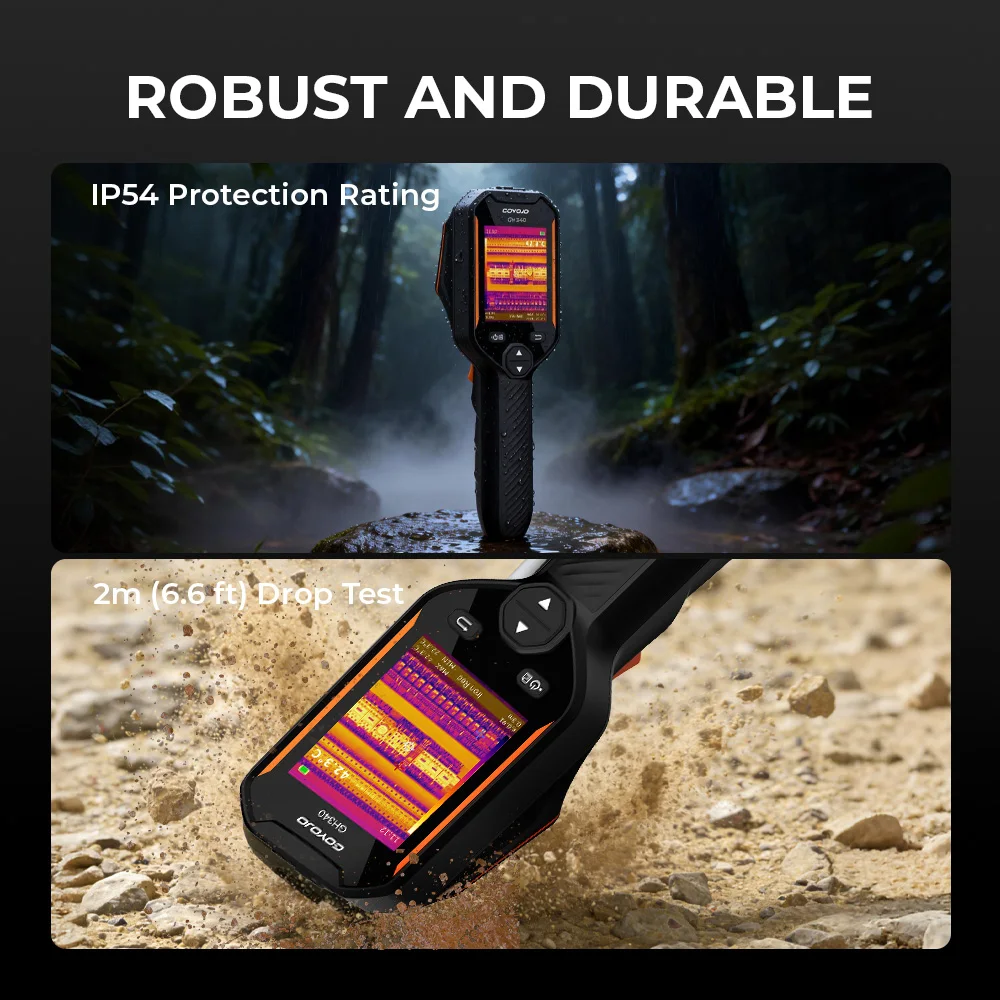

IP54 RUGGEDIZED
IP54 dust and splash protection with 2-meter drop test certification. 6-hour battery life for full-shift deployment. 8 GB internal storage holds 40,000+ thermal images. USB-C export to computer — no proprietary software required.

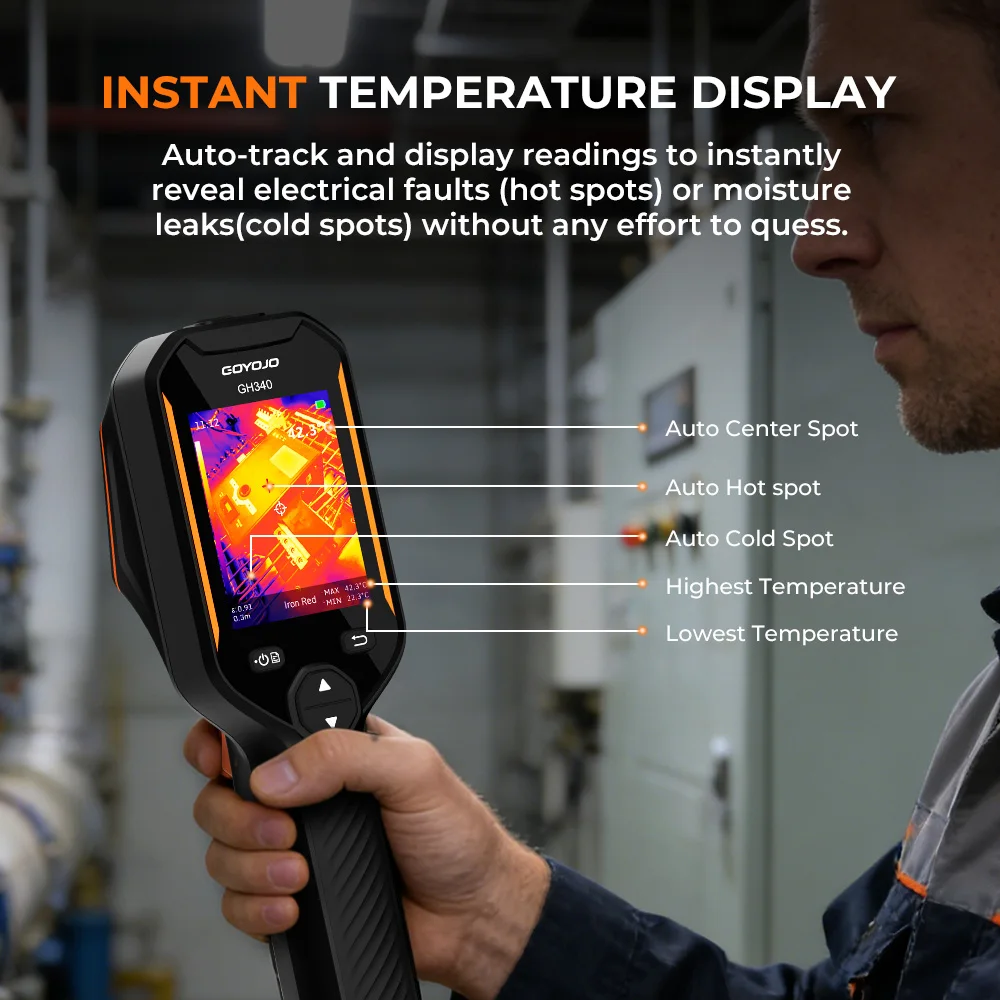

INSTANT ANOMALY TRACKING
Automatically identifies and marks the hottest point in the thermal field — instant fault detection on electrical panels and equipment
Pinpoints the coldest area for moisture infiltration, insulation gaps, and HVAC leak detection
Dedicated center crosshair with real-time temperature reading for targeted point measurements
Set custom thresholds — clear alert appears at the top of the screen when any target exceeds safe parameters
Tune emissivity and object distance settings for accurate readings on any material — metal, wood, brick, glass, or skin
6 COLOR PALETTES
> SWITCH BETWEEN SIX DISTINCT THERMAL COLOR PALETTES WITH A SINGLE BUTTON PRESS. EACH PALETTE IS OPTIMIZED FOR SPECIFIC INSPECTION SCENARIOS — IRON RED FOR ELECTRICAL FAULTS, RAINBOW FOR HVAC ANALYSIS, WHITE HOT FOR MOISTURE DETECTION, AND FUSION FOR MAXIMUM SPATIAL CONTEXT.
> THE 2.8" LCD SCREEN DELIVERS SMOOTH, VIVID THERMAL IMAGING AT 25 Hz. THE 50° × 37.2° WIDE FIELD OF VIEW CAPTURES MORE THERMAL DETAIL IN A SINGLE FRAME — SCAN ENTIRE ELECTRICAL PANELS, WALL SECTIONS, OR EQUIPMENT ARRAYS WITHOUT STEPPING BACK.
TECHNICAL SPECIFICATIONS
OPERATIONAL APPLICATIONS
ELECTRICAL INSPECTION
Detect overloaded circuits, loose connections, faulty breakers, and overheating components in electrical panels and distribution systems
HVAC & PLUMBING
Locate air leaks, duct blockages, pipe obstructions, radiant floor faults, and insulation failures in climate control infrastructure
BUILDING DIAGNOSTICS
Identify moisture infiltration, thermal bridges, missing insulation, and structural heat loss in walls, roofs, and foundations
MECHANICAL SYSTEMS
Monitor bearing temperatures, motor windings, pump housings, conveyor systems, and rotating equipment for predictive maintenance
PACKAGE CONTENTS
NOTE: BATTERY PRE-INSTALLED. 8 GB INTERNAL STORAGE. USB-C FOR CHARGING AND IMAGE EXPORT. IP54 CERTIFIED.
DETECT. VISUALIZE. PREVENT.
Professional thermal inspection for engineering and safety personnel. Ships within 3–5 business days.
